Ampex

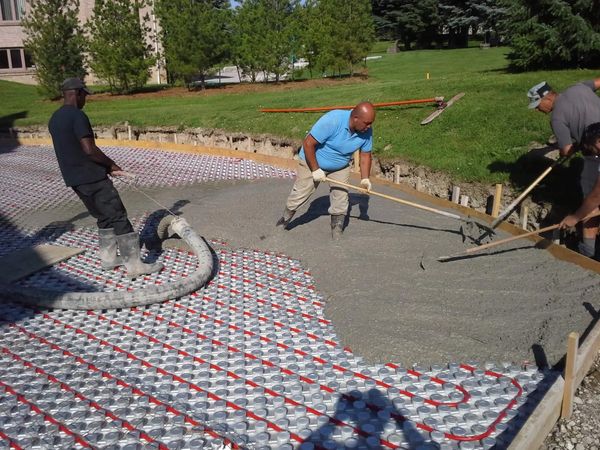

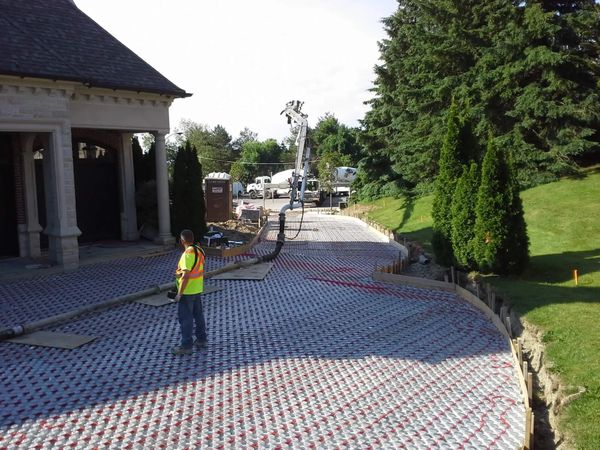

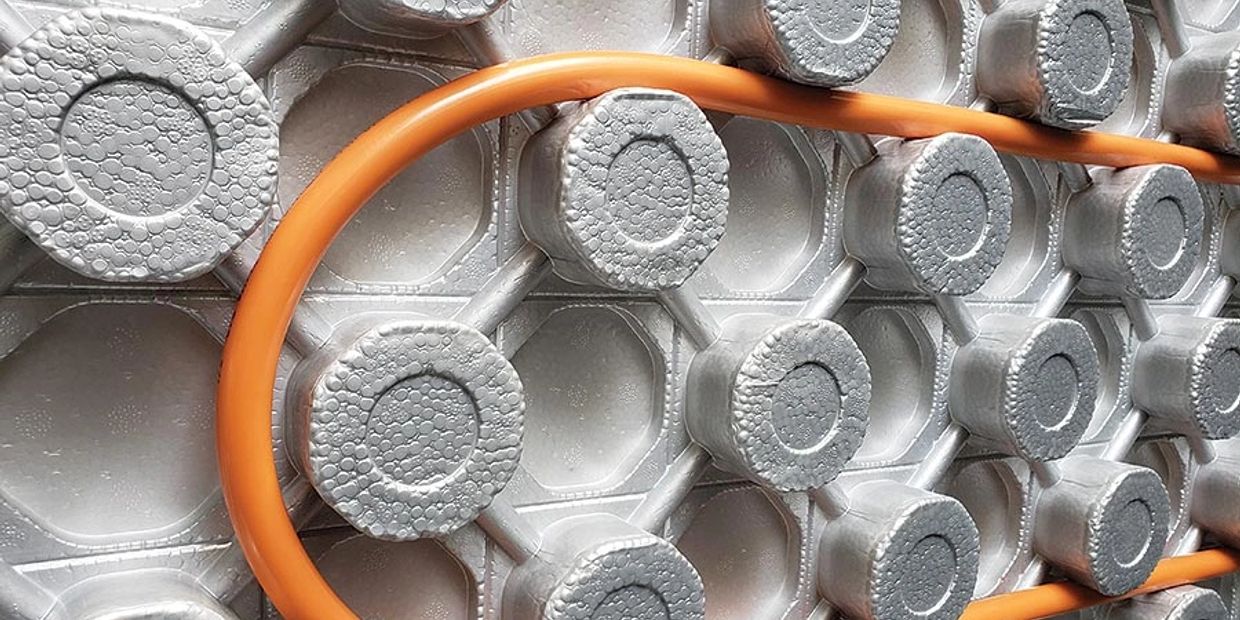

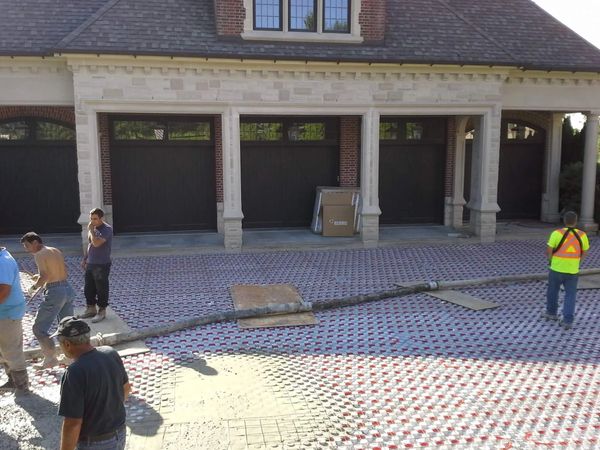

The Ampex panels have unique “mushroom” shaped nubs which locks the PEX tubing firmly in place (staples and zip ties not needed). The 2’x4’ (610x1220mm) panels are placed on compacted stone/gravel. PEX tubing is then easily inserted into the panels simply by walking in the tubing. Concrete is poured on top of the panel to the required thickness (as per local code) encasing the tubing, nubs and any steel reinforcement (optional – rebar or welded wire mesh).

Product Features

R-Value

R10, R12, R14, and R16

Compressive Strength

Residential: 30 psi (207 kPa)
Commercial: 45 psi (310 kPa)
Heavy Commercial*: 60psi (414 kPa)
*Available as special order, please contact your local rep for details.

Vapor Permeance

Residential: 0.42 US perms (23.8 ng/Pa.s.m2)
Commercial: 0.31 US perms (17.5 ng/Pa.s.m2)

Applications

HEATING SYSTEM FOR BASEMENTS AND OTHER LIVING AREAS E.G. KITCHEN, BATHROOM ETC.

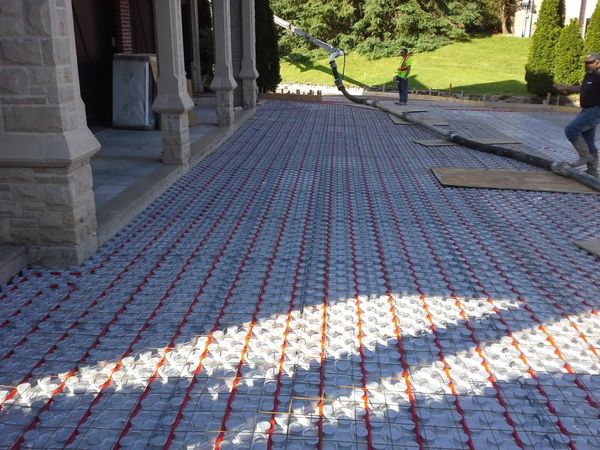

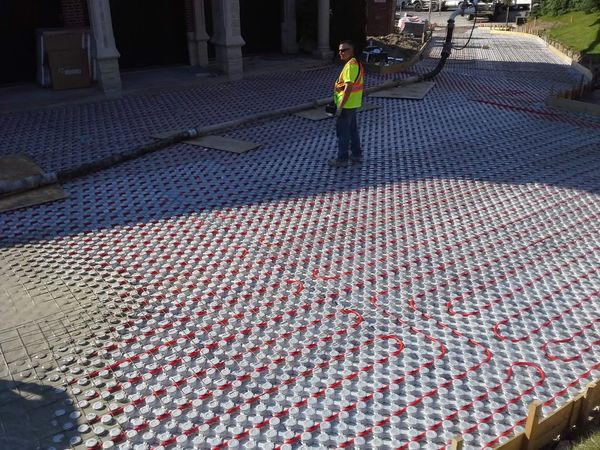

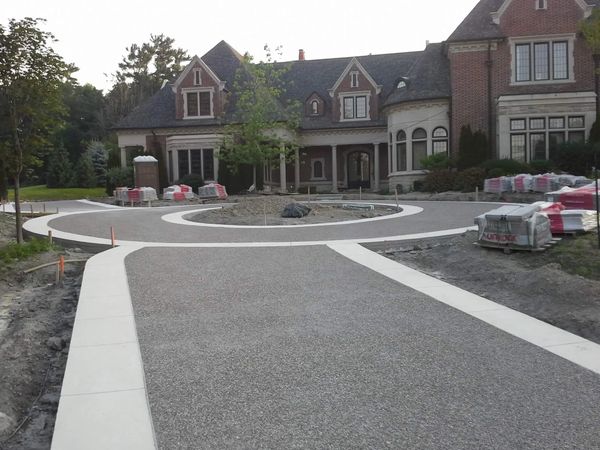

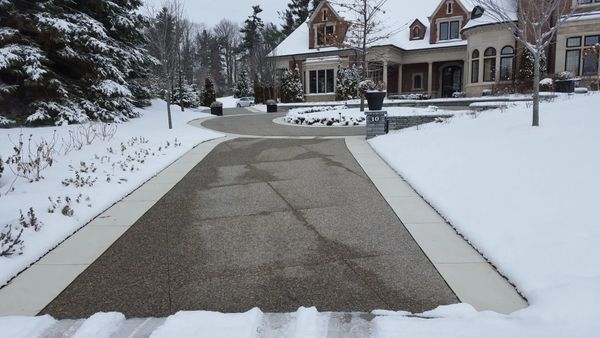

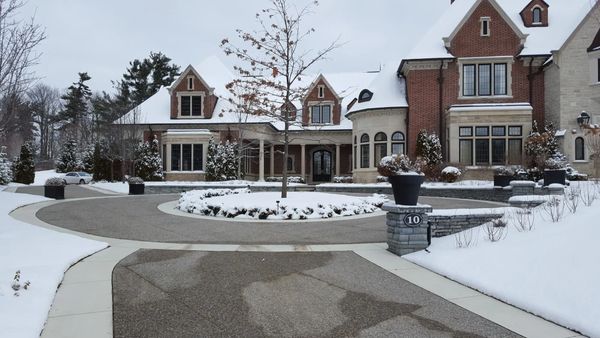

SNOW AND ICE MELT APPLICATIONS FOR DRIVEWAYS, PATIOS AND WALKWAYS
TALL WALL APPLICATIONS SUCH AS RETAIL, GYMNASIUM, BANQUET HALLS ETC.
AUTOMOBILE ESTABLISHMENTS INCLUDING GARAGES, CAR WASHES AND DEALERSHIPS

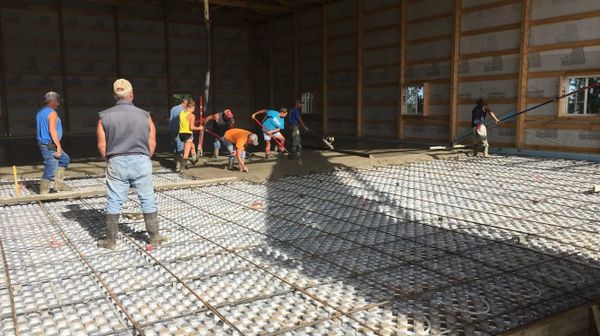

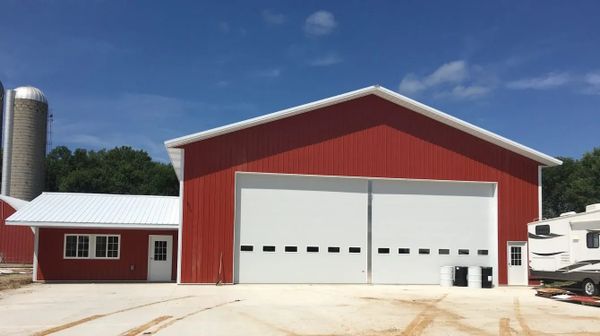

AGRICULTURAL APPLICATIONS SUCH AS WORKSHOPS AND BARNS
HEATED FLOORS IN DISTRIBUTION CENTRES, MANUFACTURING ASSEMBLY AND STORAGE

why use ampex ?

Plumbers & Contractors

Durable panel with easy walk-in installation enabling increased job-site efficiency.

Architects

Plumbers & Contractors

Innovative panel design with a mushroom-nub technology ensuring a durable, quick and simple install.

Developers

Plumbers & Contractors

Developers

Save time, labor on your radiant hydronic heating installations and achieve faster completion dates.

Homeowners

Plumbers & Contractors

Developers

Uniform heat transfer for an efficient, comfortable and warm living space.

ampex panel benefits

IMPROVED THERMAL COMFORT

Consistent grid pattern of the panel allows for uniform heat distribution.

DURABLE INSTALLATION

IMPROVED THERMAL COMFORT

The nub height accommodates multiple tube sizes and protects the tubing from damage when the panel is walked upon by other trades.

REDUCES WASTE AT SITE

IMPROVED THERMAL COMFORT

QUICK AND EASY INSTALLATION

Light and manageable panel size reduces waste due to damage on site.

QUICK AND EASY INSTALLATION

Quick and easy walk-in installation of PEX tubing without the need for staples and zip ties and completely eliminating the strain of working at 45 degree angles.

BUILT-IN VAPOR BARRIER

QUICK AND EASY INSTALLATION

BUILT-IN VAPOR BARRIER

The large, four-sided interlocking shiplap connector system makes for a quick, easy and secure installation while maintaining the continuity of the vapor barrier and eliminating the need for a dedicated 6 mil. polyethylene (unless specifically required by local building code).
